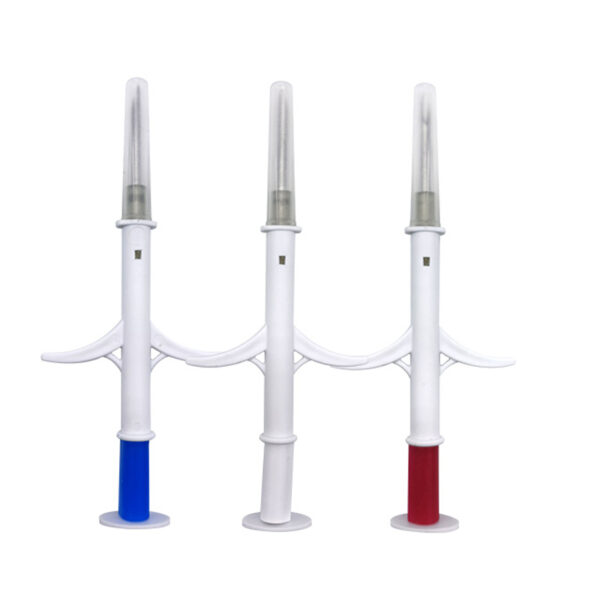

RBC-Z05 Microchips Syringe

Our microchips are constructed of biocompatible glass with RFID EM4305 microchip,Designed for subcutaneous implantation in animals.After implantation, a small layer of connective tissue forms around the microchip, preventing migration.that is ISO compliant,the chip can be read by scanner, They have been designed to have an operating life exceeding 75 years.

Send Inquiry


Raybaca microchips are made of bioglass tubes, which are sterilized and packaged by EO (ethylene oxide),all the syringes have the MSDS certificate and ICAR certificate,to ensure the quality is great.Microchips can be read by any scanner that is ISO11784/5 compliant.The 15 digits uniqiue number we accepet the 100% check in the produce and before delivery, The size of a grain of rice, Easy to implant, Glass casing Ensures implantation with extremely low risk of contamination and infection. cannot be lost or removed like a collar, tag. Support of customized package ,logo.

Product Parameters:

Model name RBC-Z05 microchips syringe
Standard ISO11784/11785 (Option:FDX-B, FDX-A,HDX ,NFC, HF ISO14443A)
Frequency Standard: 134.2KHz(Optional: LF 125KHz, HF 13.56MHz/NFC)
Material Biochemical coating, bio-grade glass encapsulation (antibacterial, antiallergic)
Size Standard: 1.25*7mm,1.4*8mm,2.12*12mm
Optional: 2.12*8mm, 3*15mm, 4*32mm
Chip Type EM4305
Read and write times 100000times
Certificate ICAR Certificate
Number ICAR number
Packaging Details 20sets/bag, 50bags/ctn, size :40*40*50cm/ctn

G.w: 9kg/ctn

Product  Advantage :

  1. With ICAR certificate support, can be use in worldwide, have unique and traceable 15digits numbers.
  2. MSDS certificate.
  3. Small size, Easily implanted and small of animal wounds.
  4. Biological Glass casing Ensures implantation with extremely low risk of contamination and infection.
  5. The glass tube housing is coated with silicone oil, which eliminates the chance of rejection by the animal and reduces the movement of the microchip within the animal after implantation.
  6. Veterinarians are able to keep the animal’s heath record.

Whats animal can implanted :

  • Wild Animals: Deer, Elk, White-tailed Deer, Ferrets, Black-footed Ferrets, Snakes, Lizards, Toads, Frogs, Chimpanzees
  • Labratory Animals: Rats, Mice
  • Big Animals: Tigers, Bears, Elephants, Gizzly Bears
  • Fish: Asain Arowana, Captive-bred Fish, Rare Fish, Alligators, Sharks, Whales
  • Endangered Animals: Penguins, Turtles, Gaint Land Tortoises, Armadillors

Instructions for use:

1. Firstly, to be sure that there is no chip under the animals skin before applying the chip.
2. Read chip before implanting,ensure the microchip number is match with the sticker number.
3. Remove cap from syring.
4. Inject in the centaral area of the shoulder and push the clip in.
5. After injecting, apply pressure to injection site to stop bleeding.
6. After subcutaneous injection, use the reader to indentify chip.
Notice This product was done by EO sterilization. Don’t use if package is damaged.
